As a high-end form of movable partition system, the core value of vertical lifting folding wall lies in the seamless switching of space through electrification and intelligence. Combining years of project experience, we sort out the technical details and scenario adaptation strategies that need to be considered in depth during the construction process to help create a safe, efficient and futuristic office space.
Motor type: DAITACHI uses professional Nord motors to avoid the jamming problem of traditional AC motors.
Lifting speed: Use the fastest speed when balancing efficiency and safety (too fast may cause shaking).
Load-bearing capacity: Adjust according to the actual data of the site, overweight may cause track deformation.
Scenario adaptation: High-frequency use scenarios require enhanced motor heat dissipation design to avoid overheating protection triggering shutdown.
Double-layer sealing design: top rubber sealing strip + bottom magnetic strip to achieve STC 62 decibel sound insulation (completely block ordinary conversation sounds).

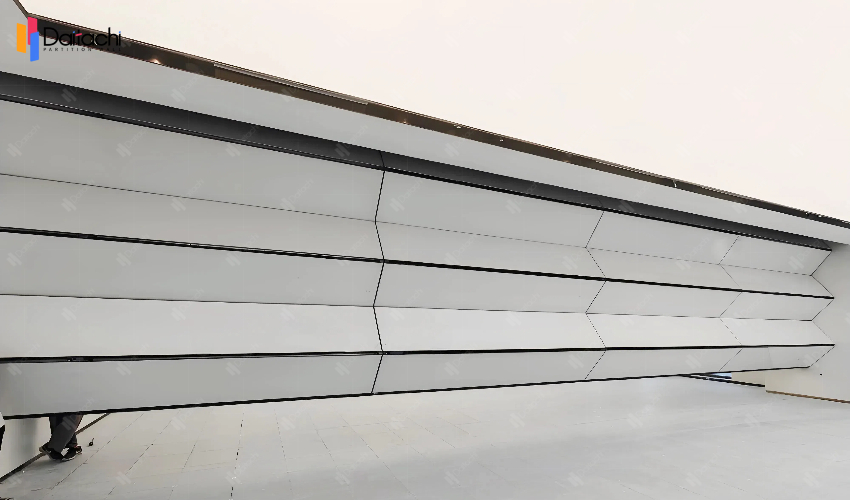

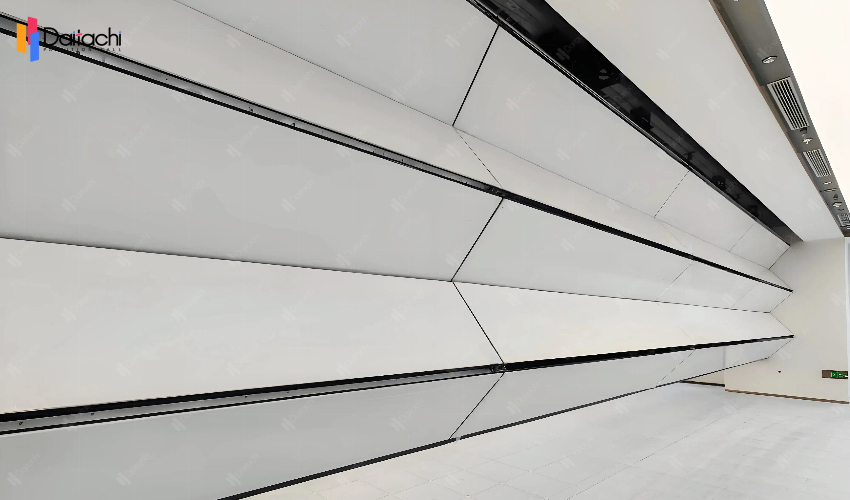

Vertical folding structure: The folding part adopts hinged connection to avoid the problem of sound leakage in the gap after the traditional lifting wall is folded.
Pitfall avoidance guide: Avoid using a single-layer sealing solution. Long-term use may cause the sealing strip to age and fall off, and the sound insulation effect will decrease. When testing, it is necessary to simulate the actual use scenario to check whether the wall is completely fitted after folding to avoid light or sound penetration.
Anti-pinch sensor: Air pressure sensing protection, emergency braking and rising for 3 seconds after detecting obstacles.
Power failure protection: Equipped with UPS backup power supply, it can be manually lifted to a safe position after power failure to avoid the wall being stuck in the middle and affecting evacuation.
Overload warning: The motor will automatically stop and alarm when it is overloaded to prevent mechanical damage caused by forced lifting.
Voltage requirements: It is recommended to use a 220V/50Hz standard power supply, and the motor power is configured at 50-80W per meter width.
Concealed wiring: The power cable trough is integrated in the track to avoid the exposed line affecting the appearance; the ground reserved inspection port is convenient for later maintenance.
Pain point solution: Traditional wiring methods are prone to cluttered lines? Choosing an integrated track design can completely hide the pipelines and improve the neatness of the space.
Frame: The surface of the high-strength aluminum alloy frame is anodized, and the corrosion resistance is better than that of ordinary spraying process.
Finish: Metal panels, sound-absorbing panels or fireproof panels are recommended, and the panel style is selected according to the actual needs of the scene.
Track: Ceiling embedded steel track (load-bearing ≥ 200kg/m), ground track-free design (to avoid tripping risks).
Data reference: The deformation of high-quality aluminum alloy frames after 100,000 lifting tests is far lower than the industry standard.
Structural evaluation: Confirm the load-bearing capacity of the ceiling and reinforce the steel structure if necessary.
Accurate measurement: Use a laser rangefinder to determine the wall width, height and ground flatness error is less than 3mm.
Reserved space: The ceiling needs to reserve a suitable height to accommodate the folded wall (the thickness after folding is determined by the unfolded height of the panel), and no space is required on the ground.
Pitfall avoidance guide: Failure to assess the load-bearing capacity of the ceiling may cause the track to fall after installation. Be sure to ask the supplier to provide a site survey report by a structural engineer.
Vulnerable parts: Modular design is required for sealing strips, pulleys and other parts to support quick replacement (without dismantling the entire wall).
Cleaning and maintenance: Metal finishes can be cleaned regularly with a vacuum cleaner, and corrosive cleaning agents should be avoided.
Upgrade space: The control panel has reserved expansion interfaces, which can be upgraded to add other required functions in the future.
Material environmental protection: The finishing material must pass the E0 level formaldehyde emission test, and the frame aluminum material can be recycled at a rate of 80%.
Fireproof level: The overall structure must meet the B1 level fireproof standard, and the motor circuit must be equipped with a flame-retardant casing.
Certification endorsement: Choose products with environmental label certification and EU CE certification to avoid environmental risks.
DATACHI's commitment: From demand communication to installation acceptance, we provide 1-to-1 exclusive services throughout the process to ensure that the lifting wall system is perfectly integrated with the building structure and provide you with the most perfect solution project. With customization capabilities, we provide dynamic effect demonstration and personalized function development (professional sticker technology, customized logo). The construction of vertical lifting folding wall is a deep combination of technology integration and space aesthetics. By scientifically planning the core elements such as lifting mechanism, safety protection, intelligent control, and choosing suppliers with professional qualifications and customization capabilities, you will get a dynamic space solution that can not only improve office efficiency but also highlight the future of the enterprise.
