1. Lightweight and High-Strength, 40% Increased Installation Efficiency
Aluminum alloy has only one-third the density of steel, but through a composite design of 6063-T6 aircraft-grade aluminum profiles and a honeycomb structure, it achieves an impact strength of 1200N/m² (GB/T 14683-2017). Modular units are 75% lighter than traditional masonry walls, with a single 65mm thick partition weighing only 28kg, and construction time reduced to one-third of traditional methods.
2. Acoustic Reconstruction, with Sound Insulation Performance Exceeding 53dB
Utilizing a sandwich structure of "aluminum alloy frame + PAR sound-absorbing foam + damping coating," the measured sound insulation coefficient reaches STC 53, far exceeding that of ordinary lightweight partition walls (STC 35-40). The 100-type partition, combining a double-layer aluminum frame with 12mm high-density fiberboard, meets the needs of high-security environments such as conference rooms and recording studios.
3. Dynamic Adaptability, Triples Space Utilization
360° Rotating Wheel System: The PTFE wheel and bearing assembly enable silent operation, supporting 90°-360° multi-directional turns, and a single track can support partitions with a span of 12m.
Vertical Folding Technology: Ultra-high (120mm thick) partitions utilize a hinged folding design, occupying only 0.12m² when folded, saving 60% of storage space compared to traditional sliding doors.
Floorless Track-Free Suspended Structure: The ceiling track supports a load capacity of 450kg/m, and the zero-obstruction design accommodates AGV robot access, meeting the dynamic zoning requirements of smart manufacturing workshops.
4. Fire Safety, Exceeding 90-Minute Fire Resistance
The aluminum frame is filled with Class A fireproof rock wool and reinforced with 1.5mm thick galvanized steel plates. It has passed the GB 8624-2012 B1 combustion test, achieving a fire resistance of 90 minutes (far exceeding the 30 minutes of glass partitions). Modular nodes utilize fireproof sealing strips to block heat conduction paths and ensure structural stability in the event of a fire.
5. Green Circularity: 58% Carbon Reduction Throughout the Lifecycle
With an aluminum alloy recycling rate exceeding 95%, the energy consumption per square meter of partition production is 82% lower than that of brick walls (according to data from the China Academy of Building Research). The modular design allows for 98% component reuse. Combined with E0-grade melamine veneer panels (formaldehyde emission ≤ 0.5 mg/L), the building has achieved LEED V4.1 certification and helped reduce its carbon footprint by 58%.
6. Intelligent Integration: Space Control Enters the IoT Era
Electric Lift System: A servo motor drives a smooth 0.3 m/s lift, supporting internet control and adapting to switching between conference and open office modes.
Environmental Sensing Module: Integrated temperature, humidity, and PM2.5 sensors work in conjunction with the fresh air system to automatically adjust the space's microclimate.
Structural Health Monitoring: Built-in strain sensors provide real-time feedback on the partition's stress status, warning of deformation risks and extending the maintenance cycle to 5 years.
Decision Recommendations:
Budget-sensitive projects prioritize 65-inch standard modules, which offer a 40% cost reduction compared to glass partitions.
For spaces requiring frequent renovations, electric vertical lift systems are recommended, increasing renovation efficiency by 70%.
For humid environments (such as swimming pools and laboratories), a combination of 304 stainless steel fittings and mildew-resistant decorative panels should be used.

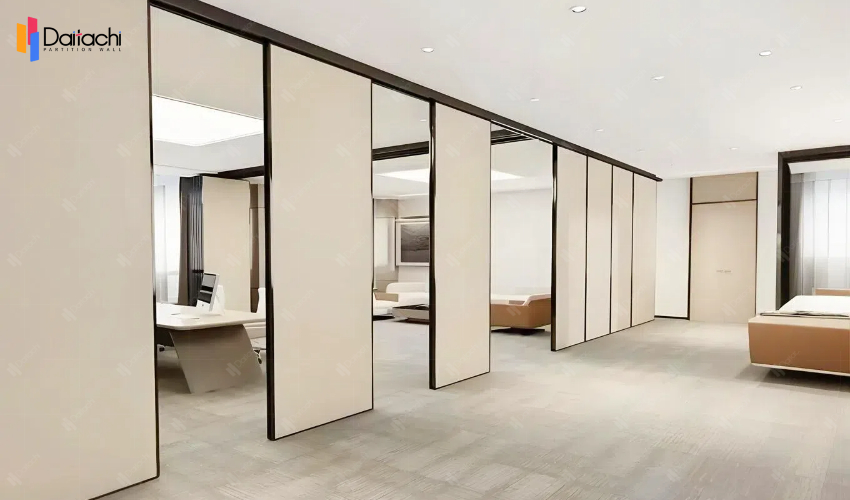

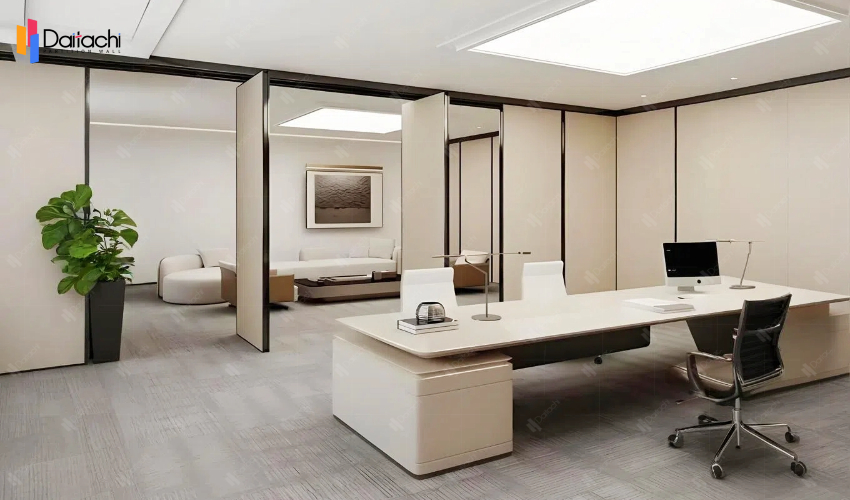

Aluminum alloy movable partition walls, through the deep integration of material science and modular design, are redefining the standard for spatial separation—evolving from simple physical barriers to intelligent spatial infrastructure that is perceptible, adjustable, and recyclable.
