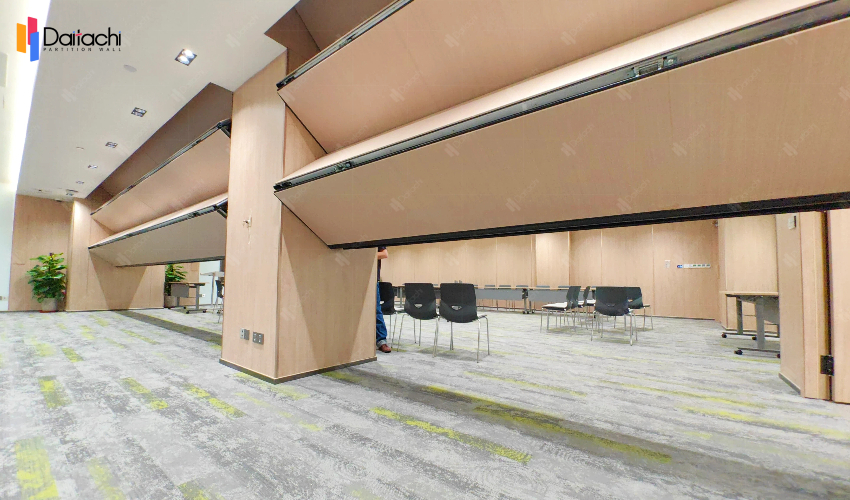

When building a vertical lift wall system, where wire ropes are employed to support the structure or as a transmission component in a vertical wall, their tension as well as general condition affect the operation stability. The analysis below examines the relationship between tension testing of wire rope specifications and jamming concerns as well as providing technical information to maintain vertical walls for lifting:
Tension Testing Methods
Tension Tester: Utilize an experienced tension tester for a direct measurement of the tension level of the wire rope. Make sure that the tension is within design limit (usually consult the device instruction manual or industry standard).
The Vibration Frequency method: After tapping the rope, and analysing its frequency of vibration the tension value can be determined using the formula (requires an expert operation).
Empirical Judgement Method: In the event that the tools of a professional are not available then the wire rope could be manually squeezed to test its elasticity (requires the comparison of historical data and the error could be substantial).
Key Testing Indicators
Tension Uniformity same wall for lifting, the variation in tension between multiple wire ropes needs to be controlled by a minimum of +5% in order to avoid the imbalance of stress caused by uneven tension.
Slack Threshold: In no-load conditions the sag (slack) in the rope must not be more than 10% of the limit of the design; otherwise the tension should be adjusted or replaced if it is necessary.
The Dynamic Tension Fluctuation While lifting, the range of tension fluctuations is not more that 15% nominal tension in order to minimize the impact on operations.
Inspection Cycle and Standards
Regular inspections: An extensive inspection should be conducted every three months. If you are using it for a high frequency it is recommended to reduce this to once per month.
Standard Reference: Use The "General Technical Conditions for Wire Ropes" or any other pertinent industry guidelines, together with the specifications for technical aspects.
Common Causes of Jamming:
Slack: Insufficient tension within the wire rope can lead to lower transmission performance which causes a series of pauses within the wall of lifting due to inadequate force in operation.
Uneven Tension: Inadequate tension variations between multiple ropes of wire can cause the wall of the lift to tilt upwards, thereby creating frictional resistance, resulting in constant jamming.
Wear and deformation of wire rope Wear and tear, damaged wires, or twisting could affect the mechanical properties the wire rope and could end up creating jamming, even under normal tension.
Damage to the Drum or Pulley: Wear and tear on the drum's surface and pulling bearings that jam can directly affect the distribution of tension of the wire rope which can cause jamming to become more severe.
Inspection and Maintenance Recommendations:
Tension Adjustment: Change wire rope's tension according to the desired value by using tensioning equipment (such like spring tensioners, or counterweights) and ensures a constant tension on several wire ropes.
Surface Inspection: Frequently check the rope's surface to check for broken wires, corrosion or deformation. change the rope immediately.
Maintenance, Lubrication Clean all contact points on the ropes, pulleys and drums, etc. in order to decrease the frictional resistance.
Repair of components: If the parts like the drum or pulleys have been worn out take them off immediately in order to ensure stability of the system.
Pick high-strength, wear-resistant ropes (such like galvanized rope) for a longer service life.
Install sensors for tension monitoring to observe changes in tension on wire rope in real-time and offer alerts in advance of problems.
Maintain records of maintenance to record every inspection's data as well as the maintenance procedures, giving an opportunity for future improvements.
