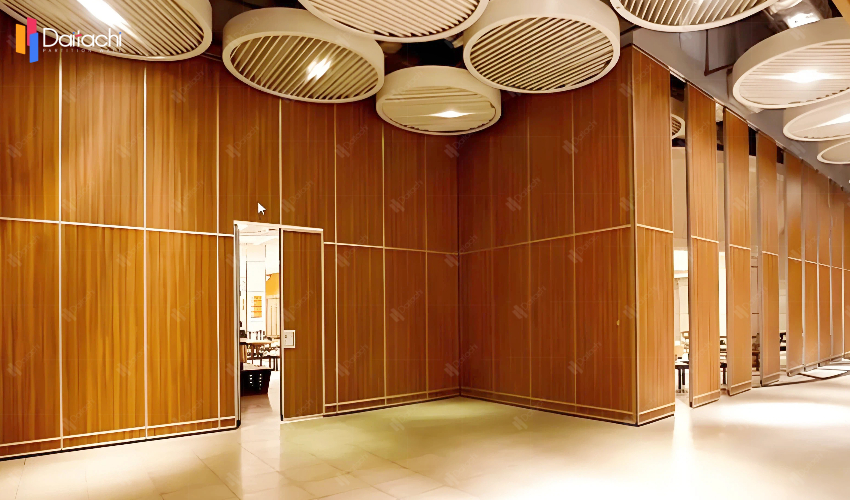

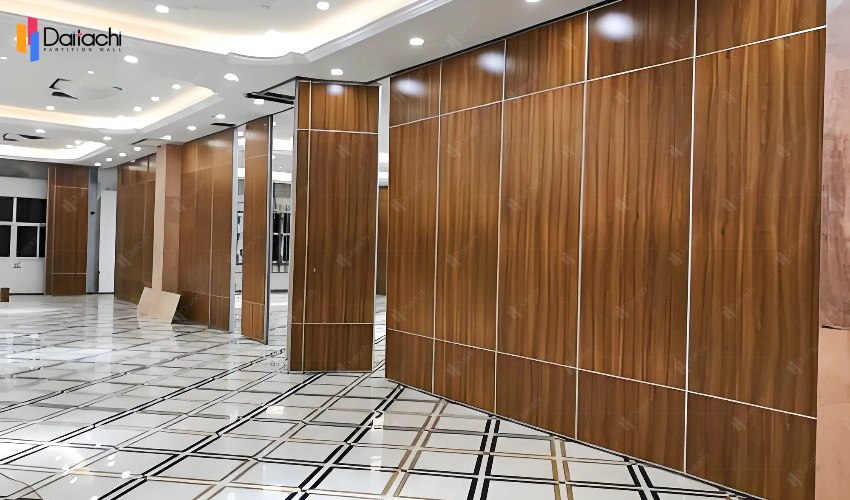

Making a wall for partitions that is 45 degrees involves combining the principles of structural mechanics, spatial aesthetics and building techniques. This is accomplished through three key steps: exact control of angle, reinforced structural support and fine work. These are the specific designs and guidelines:
Angle Positioning and Spatial Simulation
CAD Modeling: Utilize Auto-CAD and SketchUp to build the 3D model precisely defining the position of the 45-degree angled wall with the surrounding walls as well as doors and windows in order to keep out the fire escape route, pipes or other structures.
Structural Verification: Calculate the strain on the wall of partition in a 45-degree angle with PKPM as well as MIDAS software. Attention should be paid to confirming the self-weighted load, i.e., the shifting of your center of gravity on the partition wall that is tilted. The foundation's bearing capacity has to be boosted (e.g. expanding the thickness of foundation layer of concrete between 100mm and 150mm).
Seismic Pressure/Wind Pressure: For coastal and regions with high seismic risk, connections must be reinforced as per the "Code for Seismic Design in Constructions" (e.g. by increasing the amount of angle L-shaped steel).
Material Selection and Compatibility
Material with high strength, light weight and low density: ALC (Autoclaved Aerated Concrete) or GRC (Glass Fiber Reinforced Concrete) panels are preferable because of their light density and strong flexural strength and flexibility, which allows them to be used to be used in incline structures.
Reinforcement using Traditional Materials: If brick masonry is employed for reinforcement, a structural column (200mm across, 200mm in cross-section which is reinforced by four steel bar) is required at 45 degrees, using tie bars for every 500mm.
Upgraded Connectors: Metal frame partitions need "adjustable angle connectors" that allow precise 45-degree placement by adjusting the bolt holes.
Foundation Treatment and Positioning
Embedded Parts: Concrete bases are laid in 45-degree increments at both the starting and end points. Chemical anchors M12 are embedded for securing the foundation for partition.
Laser Positioning: A total station or laser level can be used for projecting an angle of 45 degrees that is error-controlled to of 1mm, to prevent the possibility of angular deviations causing the wall to move or even collide with the ceiling.
Structural Reinforcement and Node Treatment
Corner Reinforcement: Triangular reinforcement frame is erected at a 45-degree angle. The frame is made of 50mmx50mmx3mm of square tubing that is welded into the shape of a triangle. It is connected directly to the main keel with M8 bolts that increase the torsional strength.
Edge Finishing
External Corner Treatment: Alloy exterior corner strip (1.2mm in thickness) are utilized to fill them with expanded foam to reduce stress, as well as covered by fiberglass mesh to ensure crack-prevention.
Inside Corner Treatment: An expansion of 5mm joint is made, and it's filled with elastic sealant and allowing the possibility of 0.5 percentage deformation.
Fireproofing: In the event that a partition wall is located near a fire area, a fireproof rock is required to be filled with at a 45-degree angle. It must be covered with an fireproofing board (fire resistance >=1h).
Installation Sequence and Precision Control
A segmented installation: the wall is split into three long sections. The lower track is erected first (leveled by a laser) and then the wall panels are lifted segments by segments. The verticality of every segment is verified using an inclinometer (error 2mm/m).
Dynamic Adjustment: "Fine-adjustable connectors" can be found at the joints of wall panels. The nuts can be rotated to allow for +2mm compensation for planar displacement to eliminate construction errors that are cumulative.
Acceptance Standard Following: It is completed, a 45 degree angle is verified using an angle gauge. The permitted deviation can be +-0.5 degrees. The flatness of the surface is assessed using a two meters of straightedge. The allowed deviation is 3mm.
Settlement Monitoring: The settlement observation points are placed on the upper and lower sides of the wall partition. Settlement is monitored quarterly. In the event that cumulative settle is greater than 5mm the reinforcement program must be implemented.
Collision Prevention: Corner protectors of rubber are installed at a 45 degree angle to avoid structural damage caused by furniture movement or personal collisions.

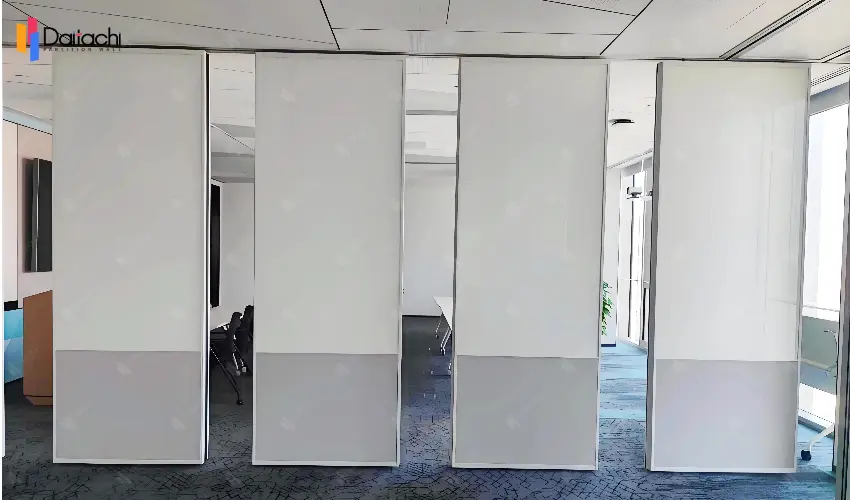

Dynamically Adjustable Partition Wall: The motor-driven track system is utilized that allows the wall to be adjusted between 90 and 45 degrees with a remote in order to accommodate the requirements of rooms that can be used for multiple purposes.
Eco-friendly Design: Vertical greening is placed on top of the wall that divides at 45 degrees together with drip irrigation systems in order to provide a sustainable workplace.
Acoustic Optimization: That is a "diffuser structure" is erected in a 45-degree angle, to transform the reflection of sound waves into scattering. This improves the acoustic effects of the area.
Designing partitions at a 45-degree angle requires breaking away from traditional right-angle thinking and achieving this through optimization across the entire chain of "structure-materials-process-maintenance." It is all about using the latest technology (such like BIM modelling as well as laser layout) to ensure precision and a new node design (such such as triangular reinforcement frames) to guarantee safety, in the end, creating a spatial separation solution that's and is both in line with government guidelines and visually appealing.
